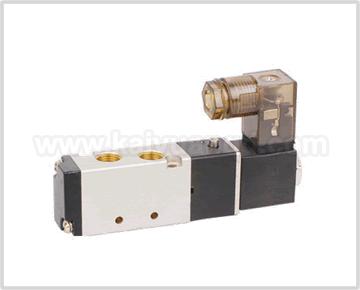

两位五通电磁阀 KYPC牌 气动换向阀 KYPC牌电磁阀4V110-06,4V120-06,4V130-06

Model

4V210-06

4V220-06

4V230C-06

4V230E-06

4V230P-06

4V210-08

4V220-08

4V230C-08

4V230E-08

4V230P-08

4A210-06

4A220-06

4A230C-06

4A230E-06

4A230P-06

4A210-08

4A220-08

4A230C-08

4A230E-08

4A230P-08

Position and way NO.

5/2 way

5/3Five-way

5/2 way

5/3 way

Effective area

14mm2(CV=0.78)

12mm2(CV=0.67)

16mm2(CV=0.89)

12mm2(CV=0.67)

Model

3V210-06

3V220-06

3A210-06

3A220-06

3V210-08

3V220-08

3A210-08

3A220-08

Position and way NO.

3/2 way

3/2 way

Effective area

14mm2(CV=0.78)

16mm2(CV=0.89)

Port size

Air inlet=Air outlet=Exhaust=G1/8″

Air inlet=Air outlet=G1/4″ Exhaust=G1/8″

Fluid

40 micron fi ltered air

Operation

Inside pilot type

Operating pressure

0.15~0.8MPa

Max. proof pressure

1.2MPa

Temperature

5~50oC

Allowable voltage

±10% of rated voltage

Power consumption

AAC: 4.5VA DC: 3W

Coil insulation & protection grade

Class F.IP65

Electrical entry

Lead wire or connector

Highest action frequency

5 cycle/second

Shortest excitation time

0.05 second
